When a round bar arrives out of round, your CNC cycle pays for it. Tool wear spikes, rejects climb, and the bar is always the root cause. At Forte Precision Metals, centerless grinding is how we prevent that. We’ve run this process in-house since 1994, and it sits at the center of everything we ship.
Buyers across aerospace, automotive, medical, and oil and gas industries rely on us specifically because our grinding happens on our floor, under our quality system. That means no third-party handoffs, no accountability gaps, and no surprises when material arrives at your dock.
The Process That Separates Precision Bar Stock From the Rest
Centerless grinding isn’t a finishing step we added to look competitive. It’s the core process we built this operation around. Every bar that leaves our facility in Franklin Park, IL, goes through a quality system that’s been ISO 9001:2015 certified since 1994, and grinding is where that standard gets proven on the material itself.
Understanding how the process works helps you specify the right bar the first time. Whether you’re buying stainless, alloy steel, titanium, or tool steel, the grinding process applies the same discipline to every grade. That consistency is what makes the ground bar a reliable incoming condition for precision machining work.
What Centerless Grinding Actually Does

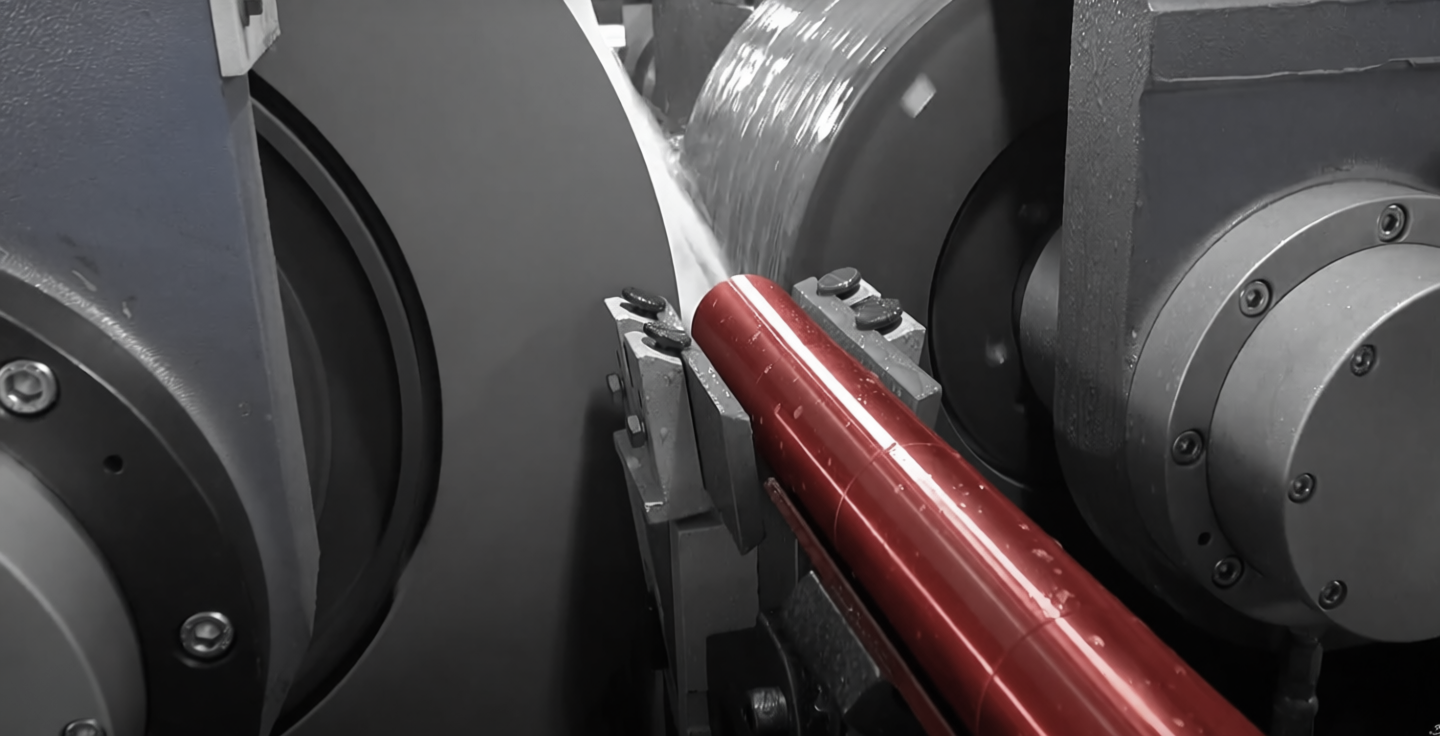

The bar rides on a blade between two wheels, a grinding wheel and a regulating wheel. No chuck, no fixed grip points. The grinding wheel removes material uniformly around the full circumference as the bar feeds through continuously. That uniform removal produces accurate roundness and a consistent surface polish from end to end.
Because nothing clamps the bar at fixed points, the process self-centers on the part’s own geometry. You get a bar that’s genuinely round, not just round where a collet held it during a previous operation.
Why Roundness Matters More Than Diameter Alone
A bar can pass its diameter spec and still be slightly oval. Run that bar through a turning center, and you’ll see chatter, inconsistent cuts, and tool wear that doesn’t match your program. The machine is compensating for the geometry that the bar should’ve solved before it arrived at your floor.
Centerless ground stock eliminates that variable at the source. Shafts, bushings, and bearing journals all benefit from bar that already holds accurate roundness on arrival. Your machine starts cutting correctly from the very first pass.
Our In-House Grinding Capacity
We grind up to 7 inches in diameter and up to 24 feet in length, right here in Franklin Park, IL. That length capacity means you’ll never accept a shorter bar just because the equipment ran out of room. Everything runs under our ISO 9001:2015 certified quality system, including Statistical Process Control, Gauge R&R, Advanced Quality Planning, and Machine Capability Studies.
Keeping grinding in-house gives you a single accountable source. We control the process, verify the output, and ship material that already meets spec. There’s no coordination across multiple vendors, no spec surviving a handoff by luck.
Materials We Grind
Centerless grinding applies across our full product range. We process stainless steel grades from 303 through 446, carbon steel, alloy steel, including 4140 and 4340, aluminum, copper, brass, bronze, titanium, tool steel, and high temperature alloys, including Inconel, Monel, and Hastelloy.
One supplier covering all those materials under one quality system is a practical advantage when you’re managing a mixed order. You make one call, specify your grades, and the same grinding process applies across every bar in the order.
Ground Bar vs. Cold Finish Bar
The cold finish bar is drawn through a die to improve the surface condition and tighten the diameter. It works well for many applications, and we stock it. Centerless ground bar goes further, because the grinding wheel removes material uniformly and produces roundness that drawing alone doesn’t achieve.
If your downstream process is precision turning or close-tolerance boring, ground stock gives you a cleaner incoming condition. We’ll tell you honestly which one your job actually needs, because the right answer depends on your specific tolerances and application.
Companion Services That Complete Your Order
Grinding gets the bar to the dimensional spec. From there, our precision metal cutting service handles cut-to-length on singles and bundles using CNC-enabled saws. Bar chamfer removes burrs and sharp edges before the material reaches your line. Polishing brings stainless to a specific roughness average or a number 8 mirror finish, and we handle electroplating prep as well.
Bar straightening using rotary machines covers ferrous and non-ferrous bars, including pipe, when geometry needs additional correction. Everything runs through the same ISO 9001:2015 certified system, so quality stays consistent across every operation on your order.
Get Your Ground Bar Quote Today
You now know exactly what centerless grinding does and why it matters for your parts. If you’re sourcing round bar for a close-tolerance application, the next step is simple. Call us at +1 (847) 451-8888, Monday through Saturday, 7 AM to 5 PM, and we’ll tell you whether ground or cold finish is the right call for your job.
You can also submit a request at fortemetals.com/request-a-quote/ any time. Tell us your grade, your diameter, your length, and your tolerance requirement. We’ll take it from there.
FAQs
What is the largest size Forte Precision Metals can centerless grind?
We grind up to 7 inches in diameter and up to 24 feet in length, fully in-house here in Franklin Park, IL.
Does centerless grinding apply to all materials you carry?
Yes, it does. We grind stainless steel, carbon steel, alloy steel, aluminum, titanium, tool steel, copper, brass, bronze, Inconel, Monel, and Hastelloy.
What’s the real difference between a ground bar and a cold finish bar?
A cold finish is drawn to tighten the diameter. Ground bar removes material uniformly by wheel, producing accurate roundness that drawing alone can’t achieve.
Is Forte Precision Metals quality certified?
Yes. We’re ISO 9001:2015 certified since 1994, with SPC, Gauge R&R, Advanced Quality Planning, and Machine Capability Studies in place.
